Metal Detectors
SDS is proud to offer some of the most advanced metal detectors from across the industry, from basic handheld detectors for searching persons at security checkpoints through to the magnetometer for detecting deep buried munitions.
The EBINGER range of detection equipment has proven its worth during many years of field use under adverse working conditions. Demining and bomb disposal technicians appreciate the extremely robust design and the good detection performance of the locators on minimum amount of metal mines or shallow buried UXO.
Ebex 610C
The cloverleaf handheld detector applies the EB damping system.
The search coil is part of an oscillator circuit, which transmits a weak,
alternating, electromagnetic field. Metal objects coming within the range of this field will cause a drain of energy. This is due to the eddy current effect and causes a change of the oscillator amplitude.
The detector electronic processes this change in amplitude and converts it into an audio and visual alarm signal. A red LED signalizes the visual alarm while the detector gives an simultaneously an audio alarm, which increases in frequency upon approach of a metal object. The detector does not affect health, heart pacemakers or magnetic recording material.
​
The cloverleaf hand scanner has an internal adjuster to adapt the detection sensitivity. On request the hand-held detector can be supplied with cylindrical probe. This permits the precise localization of very small metal objects. The Z-version has proved itself in particular for detailed checks within correctional facilities.
Features:
-
Ergonomic design
-
Simple to operate, easy to handle
-
High locating sensitivity
-
Automatic calibration
-
Loud audio signal
-
Optional vibration alarm
-
LED indication for control function
​
​
Magnex 120LW
The MAGNEX® 120 LW was developed for the detection of ferromagnetic objects buried underground and in water. Using an extension cable it also suits borehole detection locating objects at great depth and in a magnetically disturbed environment. MAGNEX® probes count amongst the most advanced tools in the market.
​
For borehole detection and water use extension cables with traction relief can be connected between probe and locator electronics water pressure-tight. On demand other special lengths of water cable can be supplied.
​
For improved productivity and data quality in subsurface EBINGER offers multi-channel systems. The flexible systems are offered in handheld or wheeled version. Multi-channel systems record data reliably during search operation without requiring the presence of an expert. Professional expertise is needed for evaluation of survey data later on a PC.
In EWR clearance operations digital mapping systems are used for technical survey and for QA of cleared areas.
​
The EPAD® data logger and the EPAS® software are a perfect match for recording, processing, visualization and evaluation of survey data in ERW clearance operations.
​
The EPAD® data logger can be operated as single or multi channel system (allowing up to six data ports) for technical or QA/QC surveys in the field. The EPAS® software allows the user to focus on the visualization and evaluation of data as it performs complex data preprocessing automatically in the background. The EBINGER system is easy-to-use.
​
EPAD® data logger, EPAS® software and EBINGER detectors are ideal tools for battle area clearance tasks.
​
Features:
-
Land-, borehole and in water use
-
Digital single or multi-channel system
-
High sensitivity and resolution
-
Digital mapping: EPAD® data logger and EPAS® software
-
Robust and reliable
-
Ergonomic handling
​
​

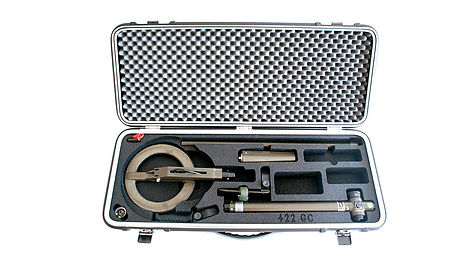

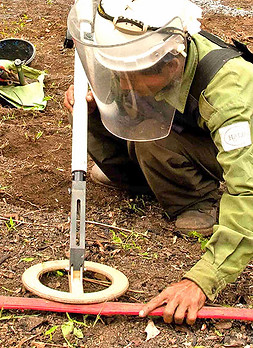

Ebex 422GC
The secret of success of the 420 series is based on the constant exchange of information with experienced bomb disposal and munitions clearance personnel with their advice applied into the evolution of the technical tools. These have proven good performance and high equipment availability in the humanitarian clearance programs in Europe, Asia, Africa and Middle America.
Reliable high detection performance relates to equipment which achieves a safe, pinpoint detection of targets under adverse conditions and which produces a large number of screened square metres. EBEX® 422 GC meets these requirements. Procurement cost is low when seen in conjunction with the exceptionally long service life cycle of the equipment and its versatility in Demining and BAC.
The EBEX® 422 GC represents the top of the range version of the 420 series providing enhanced detection sensitivity and extended detection range. It offers a dynamic and a static operation mode to match different working conditions.
The EBINGER PI – technology permits an audible distinction of the object character and a precise pin-pointing of targets. Objects such as an A/P 72a, M14 or SB33 will cause audio alarms which are different from those caused by iron fragments or mortars (rising/dropping frequency). This allows a high resolution of the targets even if buried at close distance to each other.
EBEX® 422 GC, its accessories and the dynamic operation mode provides a solution to several types of operation, it simplifies the training and it cuts cost for logistics and equipment support substantially. The sweep speed for the device is up to 2 m per second.
RELIABLE PERFORMANCE ON MOST NON-COOPERATIVE SOIL
The excellent wide-band compensation technology of EBEX® 422 GC prevails its exceptional advantages on very adverse soil when soil decomposition, high magnetic susceptibility and a strong soil conductivity are encountered. South Laos or Jaffna / Sri Lanka are just typical examples.
Features:
-
Enhanced detection performance on minimum amounts of metal
-
Reduced sensitivity to small metal fragments in BAC
-
High productivity
-
Minimised operation cost
​
​
